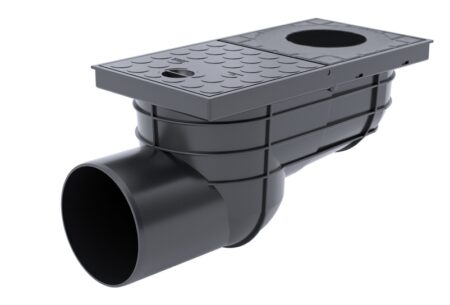

Canalization drain DN110 – lateral
DESCRIPTION:
The product is intended for drainage of rain water (surface water) into sewerage systems outside buildings. Allows connection of gutter downspouts.
Inside anti-odor dry flap prevents backflow of water vapor (anti-surge water), corrosive gases and odors from the sewerage drains.
Downloads:
Building height 175 mm.
Waste pipe – diameter 110 mm.
Eccentric rings for connecting of gutter downspout – diameter 75 – 110 mm.
Grid for caught dirt and dust.
Dry flap against the surge of water and odors from sewage.
The material contains UV stabilizers prevent fading of the surface drain.
Technical data:
Material:
HDPE with UV stabilizer
Dimension:
360x155x175 mm
Input:
75 – 110 mm
Output:
110 mm
Complies with:
ČSN EN 145-1, load class K3 – 300kg
| Supply No. | Name | Diamater | Package |
| (mm) | (pcs) | ||
| 99030170 | Canalization drain DN110 – lateral | 110 | 4 |
